Understanding Warehouse Mapping

Warehouse mapping is an integral feature within a Warehouse Management System (WMS) that plays a crucial role in efficiently managing warehouse operations. It involves creating a detailed layout or ‘map’ of the warehouse environment, which is then integrated into the WMS to facilitate various functions such as inventory management, navigation, and workflow optimisation.

At its core, warehouse mapping is about visualising the physical space of a warehouse in a digital format. This digital representation includes the precise location of aisles, racks, bins, and work areas, alongside other critical components like docking stations and packaging areas. The map is designed to mirror the real-world layout of the warehouse, providing a clear and accurate representation of the space for operational purposes.

The Role of WMS in Warehouse Mapping

The integration of WMS in warehouse mapping marks a significant advancement in logistics and inventory management. WMS serves as the technological backbone that not only supports but also enhances the functionality of warehouse mapping, making it a pivotal tool in modern warehouse operations.


Enhancing Accuracy and Efficiency

A WMS, equipped with warehouse mapping features, provides an accurate and detailed representation of the warehouse layout. This digital mapping is crucial for pinpointing the exact locations of products within the warehouse, from individual shelves to pallet positions. By doing so, the WMS dramatically improves the accuracy of inventory tracking and reduces the time spent locating items, thereby enhancing overall operational efficiency.


Streamlining Picking and Placement Processes

One of the key functions of a WMS in warehouse mapping is streamlining the picking and placement processes. The system uses the warehouse map to create optimized paths for picking orders, minimising travel time and effort for warehouse staff. This optimisation is crucial in high-volume warehouses where even small efficiencies can save time. Additionally, the WMS assists in determining the best locations for storing incoming goods based on factors like size, weight, frequency of access, and compatibility with other stored items.


Real-Time Data Utilisation

The dynamic nature of warehouse operations requires real-time data for maximum efficiency. A WMS with warehouse mapping capabilities continuously updates the map as items are moved, added, or removed. This real-time update ensures that the inventory data is always current, providing an accurate picture of stock levels and locations at any given moment. Such up-to-date information is vital for responding quickly to order requests, conducting inventory audits, and making informed decisions about warehouse space utilisation.


Facilitating Scalability and Flexibility

As businesses grow, their warehousing needs change. A WMS with robust warehouse mapping functionalities can easily adapt to these changes. Whether expanding to additional storage areas, reconfiguring existing spaces, or accommodating new product lines, the system can quickly update the warehouse map to reflect these changes, ensuring that the warehouse continues to operate efficiently despite alterations in its physical layout.


Enhancing Safety and Compliance

Warehouse mapping within a WMS is crucial in ensuring safety and regulatory compliance. The system can help identify and mark hazardous areas, ensure proper spacing between items for safe navigation, and maintain clear egress paths. By doing so, it not only protects employees but also ensures that the warehouse adheres to safety regulations and standards.

Benefits of Effective Warehouse Mapping

Optimises Space and Reduces Costs

One of the common challenges in warehouse management is the ineffective use of available space. Without a clear layout and understanding of the warehouse, spaces often go underutilised, leading to a cluttered and disorganised environment. Effective warehouse mapping directly addresses this issue by optimising the use of available space. With a well-designed map integrated into the WMS, every square foot of the warehouse is strategically utilised, leading to a more organised and efficient storage system. This optimisation declutters the warehouse and potentially reduces the need for additional storage facilities, thereby lowering operational costs.


Streamlines Picking and Reduces Lead Times

In warehouses without a transparent mapping system, workers often spend excessive time navigating through the aisles to locate and pick items. This inefficiency can lead to longer fulfilment times and decreased productivity. A well-implemented warehouse map streamlines the picking process by guiding workers along the most efficient paths to the items. This efficiency significantly reduces the time spent locating products, enabling faster order fulfilment and reducing lead times. The quicker turnaround not only boosts productivity but also enhances customer satisfaction.


Accurate Inventory Tracking and Management

Lack of a proper warehouse mapping system can lead to misplacement and inventory mismanagement, resulting in inaccuracies in stock levels and potential delays in order replenishment. Effective warehouse mapping ensures accurate tracking and placement of inventory. With precise locations mapped out in the WMS, inventory management becomes more accurate and reliable. This accuracy leads to better stock control, reduced instances of lost or misplaced items, and more efficient replenishment processes.


Enhances Safety and Compliance

An unorganised warehouse often poses safety risks, with obstructed aisles and improperly stored goods increasing the likelihood of accidents. Warehouse mapping contributes to a safer work environment by ensuring transparent and accessible aisles, properly designated storage areas, and adherence to safety regulations. A well-mapped warehouse reduces the risk of accidents, ensuring a safer workspace for employees and compliance with occupational safety standards.


Successful Warehouse Mapping

Managing a large and complex warehouse, one of our clients faced significant challenges in inventory management and the efficient navigation of their storage systems. Their existing WMS could not support bin-level inventory tracking, and the reliance on pickers’ memory for static location management was proving inefficient, especially for training new team members.


The Challenge

The warehouse’s existing system made it difficult to quickly locate items, particularly new stock whose names or identifiers were not yet familiar to the staff. The need for a more dynamic, accessible, and easy-to-understand mapping system was evident.


Implementation of Clarus WMS

Recognising these challenges, the client implemented Clarus WMS, mainly focusing on its advanced warehouse mapping features. The goal was to create a more intuitive and efficient way to manage and navigate the warehouse.


  1. Creating Interactive Maps:
    • The client utilised Clarus WMS to develop detailed sectional maps for each aisle in the warehouse, which were then displayed at the end of every aisle. This visual representation significantly aided in simplifying the navigation process.

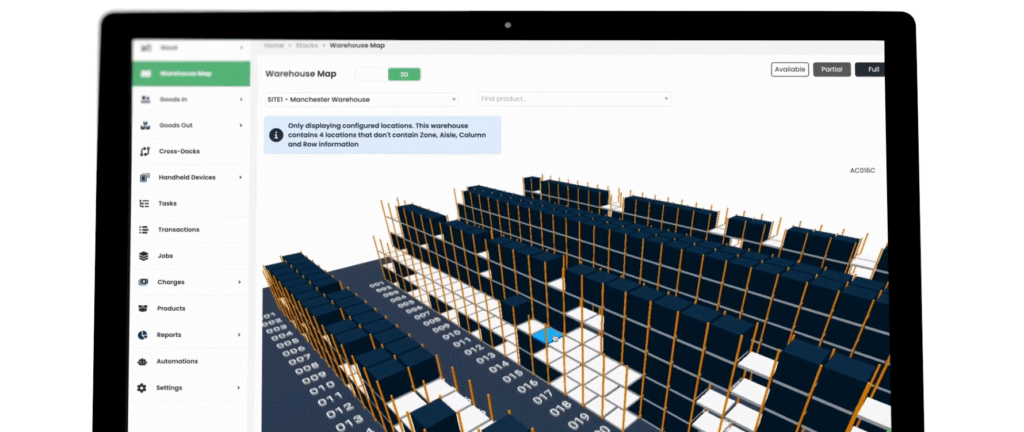

    • Additionally, they took advantage of the 3D mapping capabilities of Clarus WMS, providing a more immersive and detailed view of the warehouse layout.
  2. Enhanced Inventory Management:
    • With the implementation of Clarus WMS, the client could easily track new stock. The system allowed them to search for items based on their approximate location, view the details on the 3D map, and quickly understand the inventory.


The Outcome

The integration of Clarus WMS transformed the client’s warehouse operations:

  • Improved Efficiency: The new mapping system allowed for quicker location and retrieval of items, significantly reducing the time spent navigating the warehouse.
  • Enhanced Training: Training new staff became more straightforward, thanks to the visual tools and easy-to-understand layout provided by the WMS.
  • Better Inventory Management: The ability to visually locate items and access detailed information about the stock improved inventory management and reduced errors.

Best Practices for Warehouse Mapping

Effective warehouse mapping is essential for optimising warehouse operations. Implementing best practices in warehouse mapping can lead to significant improvements in efficiency, accuracy, and safety. Here are some key strategies and practices that have proven effective:


1. Utilise Advanced Mapping Tools

  • Implement Advanced WMS Solutions: Leverage the capabilities of sophisticated Warehouse Management Systems like Clarus WMS. These systems offer detailed mapping features, including 3D layouts, that can significantly enhance the visibility and management of warehouse space.
  • Integrate Technology: Employ technologies such as RFID, barcoding, and IoT sensors for tracking and updating warehouse maps. This integration ensures the map remains accurate and reflects the current warehouse state.


2. Detailed and Accurate Layout Creation

  • Map All Elements: Include every physical element of the warehouse in the map, such as aisles, racks, bins, loading docks, and employee workstations. Ensure that the map is as detailed and comprehensive as possible.
  • Regular Updates: Keep the map updated with any changes in the warehouse layout, inventory shifts, or operational modifications to maintain its effectiveness and accuracy.


3. Strategic Labeling and Signage

  • Clear Labeling: Clearly label aisles, racks, and bins in alignment with the warehouse map. This practice aids in easy navigation and quicker location of items.
  • Use of Signage: Employ signage throughout the warehouse to guide staff and enhance safety. Signage should be consistent with the map for ease of understanding and navigation.


4. Optimize Layout for Efficiency

  • Design for Workflow: Arrange the warehouse layout to support efficient workflows. Place high-demand items closer to packing and shipping areas and design picking paths to minimise travel time.
  • Consider Space Utilisation: Maximise space utilisation by considering vertical storage options and appropriately sizing aisles and storage areas.


5. Safety and Accessibility

  • Ensure Safety Compliance: The map should facilitate a safe working environment by marking safety hazards, emergency exits, and no-access zones.
  • Accessibility: Design the warehouse to be accessible, considering ease of movement for staff and equipment.


6. Training and Communication

  • Staff Training: Train staff thoroughly on reading and understanding the warehouse map. This training is crucial for new employees to acclimate to the warehouse environment quickly.
  • Open Communication: Encourage feedback from staff about the warehouse layout and mapping system. Frontline workers can provide valuable insights into potential improvements.


7. Continuous Improvement

  • Regular Review and Analysis: Regularly review the warehouse mapping system to identify areas for improvement. Analyze data from the WMS to understand traffic patterns and storage efficiencies.
  • Stay Updated with Trends: Keep abreast of the latest trends and technological advancements in warehouse mapping and management to enhance the system continually.

Frequently Asked Questions

What is the Best Layout for a Warehouse?

The best layout for a warehouse depends on various factors including the types of goods stored, the volume of inventory, and the warehouse’s operational processes. Generally, an effective layout maximises space utilisation, minimises travel time for picking operations, and ensures safety and accessibility. Common layouts include U-shaped, I-shaped, and L-shaped configurations. The U-shaped layout, for instance, is often preferred for its efficiency in integrating receiving, storage, and shipping areas in a seamless flow. It’s essential to customize the layout based on the specific needs and workflows of the warehouse to achieve optimal efficiency.
The warehouse layout process is a critical exercise in planning and organising the physical space of a warehouse to enhance its operational efficiency. This comprehensive process begins with an Assessment of Needs, where a thorough understanding of the types of products to be stored, their volume, and the frequency of access is established. This is followed by Space Planning, which involves strategically allocating space for key warehouse functions such as receiving, storage, packing, and shipping. The next phase, Layout Design, is where a layout is created to maximise space usage and operational efficiency, involving the precise placement of racks, shelves, workstations, and equipment. Once the design is finalised, the Implementation phase involves setting up the physical layout as per the planned design. The process doesn’t end here; it requires ongoing Review and Adaptation. This last stage is crucial for ensuring the layout remains effective, involving continuous evaluation and necessary adjustments to the layout to accommodate any changes in warehouse operations or inventory.
A U-shaped warehouse is a layout design where the receiving and shipping docks are placed next to each other, forming a ‘U’ shape. This layout facilitates efficient movement of goods, typically following a first-in, first-out (FIFO) system. Goods enter through the receiving dock, move through storage and processing in the middle section, and then exit through the shipping area. The U-shaped layout is praised for minimising cross-traffic and streamlining the flow of goods, making it a popular choice for many warehousing operations.
Organising a messy warehouse is a multifaceted process that requires a systematic approach to restore order and efficiency. The first step in this process is Decluttering, which involves removing unnecessary items to clear up valuable space. Following this, it’s essential to Reassess the Layout of the warehouse, redesigning it to enhance the flow of operations and improve accessibility. The next crucial step is Labeling and Signage, ensuring that all storage areas, aisles, and safety zones are clearly marked for easy navigation and compliance with safety standards. Alongside this, Implementing Organising Systems is vital; this means utilising shelving, bins, and racks effectively and assigning specific locations for various items to streamline finding and storing inventory. Regular Maintenance is another key aspect, establishing routine schedules for cleaning and upkeep to maintain the organised state of the warehouse. Inventory Management plays a significant role as well, involving regular audits of inventory to monitor stock levels accurately and prevent issues like overstocking. Finally, Employee Training is imperative to educate the staff on the best organisational practices and the importance of maintaining order within the warehouse. Together, these steps form a comprehensive strategy to transform a chaotic warehouse into a organised and efficient workspace.
The Warehouse Management System (WMS) process is a comprehensive approach to managing and controlling warehouse operations, employing specialised software to oversee the journey of goods and materials from their entry into the warehouse to their eventual departure. This process begins with Receiving Inventory, which involves the meticulous tracking and logging of inventory as it arrives, ensuring accurate records from the outset. Next is Storage, where the WMS assigns and manages the specific storage locations for each item in the inventory, optimising space utilisation and accessibility. A crucial step in the process is Picking and Packing, where the WMS streamlines these tasks using optimised paths and methods, thereby enhancing efficiency and reducing errors. The Shipping phase involves coordinating the entire shipping process, including the scheduling of shipments and the loading of goods, ensuring timely and accurate deliveries. A vital component of the WMS process is Reporting, which entails generating real-time reports on inventory levels, order status, and other critical performance indicators, providing invaluable insights for decision-making. Lastly, Continuous Improvement is an ongoing aspect, where data collected by the WMS is analysed to identify areas for improvement, thereby continually enhancing the efficiency, accuracy, and overall productivity of warehouse operations. By implementing these processes and best practices, warehouses can significantly optimise their operations, leading to a more streamlined, effective, and productive management system.
